Woven High-Performance Geotextile Fabrics
High-tensile strength woven options excellent for high-load capacity uses, road reinforcement, driveway stabilization, retaining walls, and more.
Talon Fabrics Geotextile and Landscape Fabrics

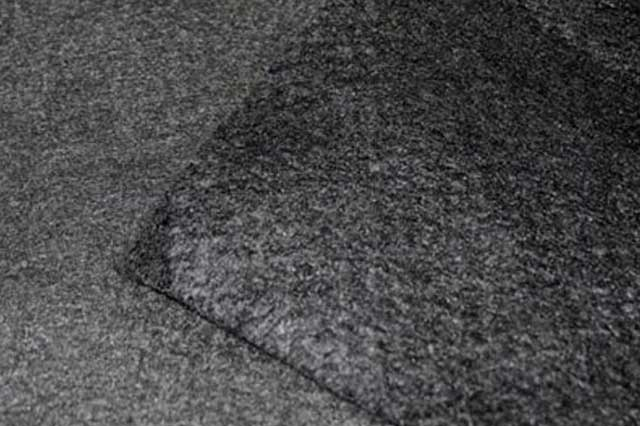

Nonwoven Geotextile Fabrics
Nonwoven polypropylene fabrics ranging in weight from 4 to 16 oz. Designed as a lighter-strength fabric with high filtration. Use on drain fields and as a separation lining for rock or mulch.

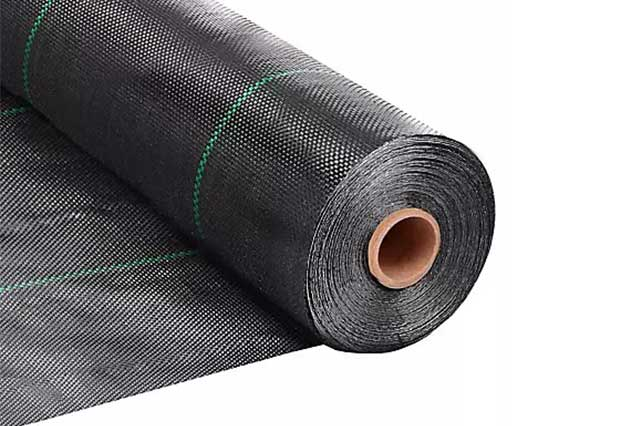

Ground Cover Fabrics
Lightweight woven polypropylene fabrics designed for landscape use such as: weed barriers, ground covers, landscape beds, nursery and planting stripes. Excellent for stabilization and separation, UV protected for surface uses.

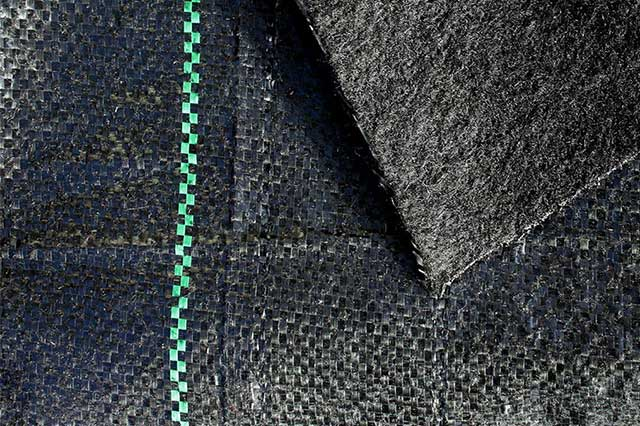

Needle Punched Ground Cover Fabric
Lightweight woven polypropylene fabrics designed for landscape use such as: weed barriers, ground covers, landscape beds, nursery and planting stripes. Excellent for stabilization and separation, UV protected for surface uses.
How Do Geotextiles Landscape Fabrics Help?
High-Performance Woven Geotextiles
Filtration | Separation | Stabilization | Reinforcement
| FABRIC APPLICATION | ROLL WIDTH (FT) | ROLL LENGTH (FT) | PRODUCT SKU | |
| WOVEN GEOTEXTILES | Separation | 15 | 300 | TF-200S-15X300* |
| Separation | 15 | 300 | TF-315S-T-15X300* | |
| Stabilization | 12.5 | 432 | TF-200W-12.5x432 | |
| Stabilization | 15 | 300 | TF-270W-15x300 | |
| Stabilization | 15 | 300 | TD-300W-15x300 | |
| Stabilization | 15 | 300 | TF-320W-T-15x300* | |
| Stabilization | 15 | 300 | TF-370W-T-15x300* | |
| Stabilization | 15 | 300 | TF-570W-T-15x300* | |
| Filtration | 15 | 300 | TF-402F-T-15x300* | |
| Filtration | 15 | 300 | TF-404F-T-15x300* | |
| Filtration | 15 | 300 | TF-700F-T-15x300* | |
| Reinforcement | 15 | 300 | TF-1084R-T-15x300* |
| MECHANICAL PROPERTIES | HYDRAULIC PROPERTIES | |||||
| MARV Property | Wide-width Tensile Strength @ Ultimate | Wide-width Tensile Strength @ 5% strain | Trapezoidal Tear | Water Flow Rate | Permittivity | Apparent Opening Size (AOS) |
| Test Method | ASTM D4595 | ASTM D4595 | ASTM D4533 | ASTM D4491 | ASTM D4491 | ASTM D4751 |
| Unit | PSF (kN/m) | PSF (kN/m) | lbs (kN) | fal/min/ft2 | sec-1 | US Sieve (mm) |
| TF-200W | 200 x 200 | -- | 75 x 75 | 5 | 0.05 | 40 (0.425) |
| TF-300W | 315 x 315 | -- | 113 x 113 | 7 | 0.08 | 40 (0.425) |
| TF-320W | 2640 x 2640 (38.5 x 38.5) | -- | 162 x 125 (712 x 556) | -- | 0.5 | 40 (0.425) |
| TF-370W | 4140 x 3240 (50.47 x 47.3) | -- | 150 x 150 (667 x 667) | -- | 0.9 | 30 (0.600) |
| TF-570W | 4800 x 4800 (70 x70) | 1920 x 2640 (28 x 38.5) | 180 x 180 (801 x 801) | 40 | 0.6 | 30 (0.600) |
| TF-402F | 2400 x 1740 (32 x 25) | -- | 115 x 75 (512 x 334) | 145 | 2.1 | 40 (0.425) |
| TF-404F | 4000 x 3450 (58 x 50) | -- | 180 x 165 (800 x 734) | 70 | 0.9 | 40 (0.425) |
| TF-700F | 2700 x 1740 (39 x 25) | -- | 100 x 60 (445 x 267) | 18 | 0.28 | 70 (0.212) |
| TF-1084R | 5700 x 7400 (83.2 x 108) | 1975 x 4235 (28.8 x 61.8) | 350 x 480 (1560 x 2140) | 75 | 1.1 | 30 (0.600) |
*Available in DOT/NTPEP approved and contractor grade.
Nonwoven Geotextiles
Filtration | Separation | Drainage
| FABRIC WEIGHT (OZ.) | ROLL WIDTH (FT) | ROLL LENGTH (FT) | UNITS/PALLETS | PRODUCT SKU | |
| NONWOVEN GEOTEXTILES | 4 oz. | 3 | 360 | 20 | TF-4NW-3X360 |
| 4 | 360 | 20 | TF-4NW-4X360 | ||
| 6 | 360 | 16 | TF-4NW-6X360 | ||
| 7.5 | 360 | 16 | TF-4NW-7.5X360 | ||
| 12 | 360 | Loose Rolls | TF-4NW-12X360* | ||
| 15 | 300 | Loose Rolls | TF-4NW-15X300* | ||
| 6 oz. | 12 | 360 | Loose Rolls | TF-6NW-12x360* | |
| 15 | 360 | Loose Rolls | TF-6NW-15x360* | ||
| 8 oz. | 12 | 360 | Loose Rolls | TF-8NW-12x360* | |
| 15 | 360 | Loose Rolls | TF-8NW-15x360* | ||
| 10 oz. | 12 | 360 | Loose Rolls | TF-10NW-12x360 | |
| 15 | 300 | Loose Rolls | TF-10NW-15x300 | ||
| 12 oz. | 12 | 360 | Loose Rolls | TF-12NW-12x360 | |
| 15 | 300 | Loose Rolls | TF-12NW-15x300 | ||
| 16 oz. | 12 | 360 | Loose Rolls | TF-16NW-12x360 | |
| 15 | 300 | Loose Rolls | TF-16NW-15x300 |
*Available in DOT/NTPEP approved and contractor grade.
Ground Cover Fabrics
Separation | Stabilization
| FABRIC WEIGHT (OZ.) | ROLL WIDTH (FT) | ROLL LENGTH (FT) | UNITS/PALLETS | PRODUCT SKU | |
| GROUND COVER FABRICS (WOVEN) | 3 oz. | 3 | 300 | 49 | TF-GC3-3x300 |
| 4 | 300 | 56 | TF-GC3-4x300 | ||
| 6 | 300 | 64 | TF-GC3-6x300 | ||
| 10 | 300 | Loose Rolls | TF-GC3-10x300 | ||
| 12 | 300 | Loose Rolls | TF-GC3-12x300 | ||
| 15 | 300 | Loose Rolls | TF-GC3-15x300 |
Needle Punched Ground Cover Fabrics
Filtration | Separation | Drainage
| FABRIC WEIGHT (OZ.) | ROLL WIDTH (FT) | ROLL LENGTH (FT) | UNITS/PALLETS | PRODUCT SKU | |
| NEEDLE PUNCHED GROUND COVER FABRICS | 5 oz. | 3 | 250 | 30 | TF-GCNP5-3x250 |
| 4 | 250 | 30 | TF-GCNP5-4x250 | ||
| 5 | 250 | 25 | TF-GCNP5-5x250 | ||
| 6 | 250 | 25 | TF-GCNP5-6x250 | ||
| 8 | 250 | 20 | TF-GCNP5-8x250 | ||
| 12 | 250 | Loose Rolls | TF-GCNP5-10x250 |
